Wdwh8301 Large Torque CNC Winding Machine for Winding Enameled Wires 0.1

Basic Info.

Model NO.	WDWH8301
Specification	850x400x600mm
Trademark	Windoo/OEM
Origin	China
HS Code	8544110000
Production Capacity	5000

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 60.00cm Package Gross Weight 60.000kg

Product Description

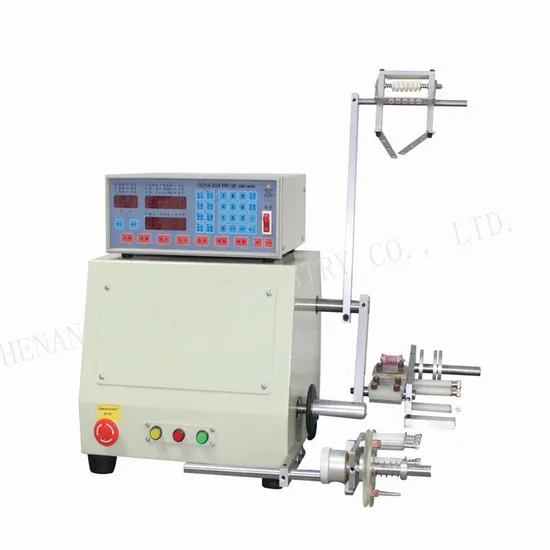

WDWH8301 Large torque CNC Winding Machine for winding enameled wires 0.1-1.0mm

Wdwh8301 Large Torque CNC Winding Machine for Winding Enameled Wires 0.1-1.0mm

Model:	WDWH830 Winding Machine
Number of spindles:	1 spindle
Spindle diameter:	15mm
Control mode:	CNC control
Maximum speed:	3000rpm
Applicable wire diameter:	0.1-1.0mm
Line spacing:	0-9.999mm
Winding width:	230mm
Cable width:	220mm
Spindle motor:	400W/DC
Cable motor:	stepper motor
Number of memory groups:	999 groups
Working power:	AC220V, 50HZ
Machine size:	850x400x600mm
Machine weight:	60kg
Scope of application:	EI transformers, high frequency transformers, pulse transformers, inductance coils, adaptive power supplies

Main features:
1. High-precision winding shaft, low noise, high strength and long life.
2. Special tensioner, the tension is even and stable when winding.
3. The winding parameters are programmable, up to 1000 kinds of winding coil specifications can be stored, and the programming is practical and convenient.
4. Powerful functions, suitable for customers with multiple varieties and specifications of coils.
5. Full Chinese (or English) operating program interface, easy to operate and easy to understand.
6. Winding parameters can set the winding point, winding width, winding speed, slow start, slow stop, winding direction, stop at both ends, automatic return, automatic start, automatic slot and other functions.
